Our Products
UPS
Online UPS

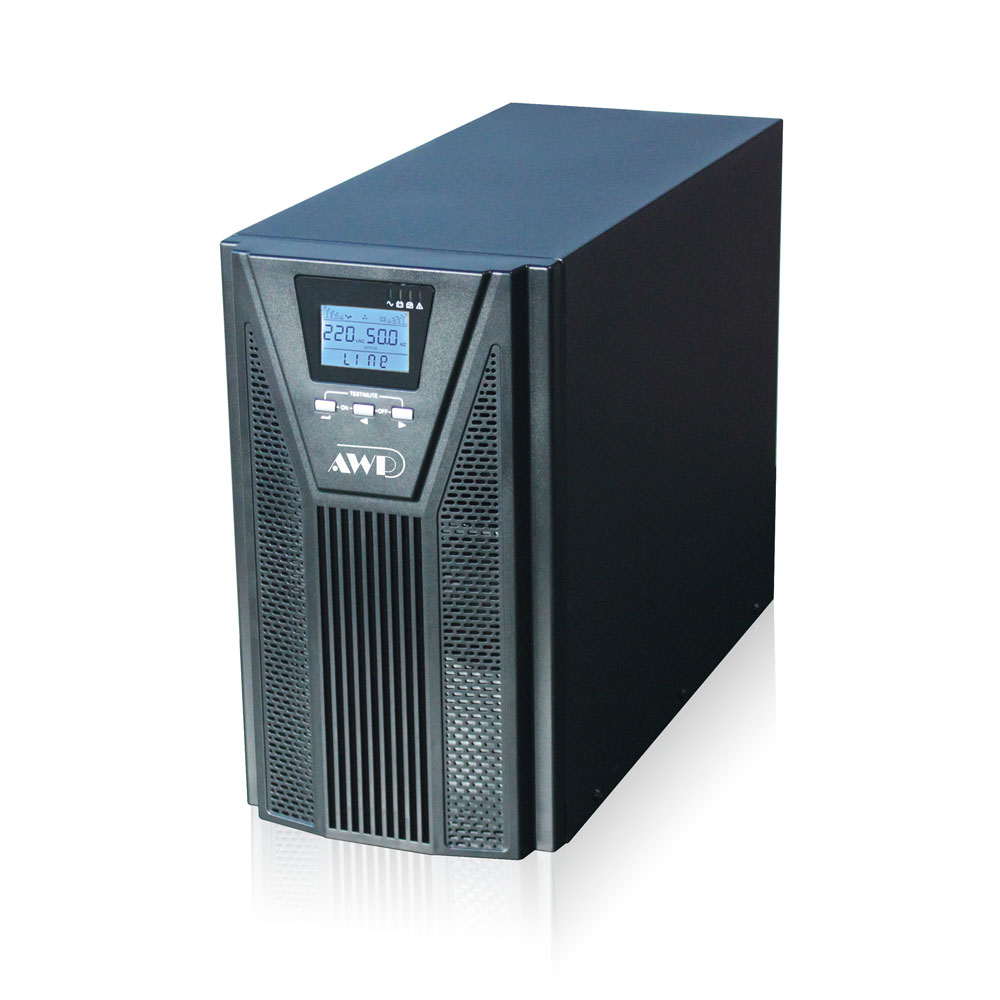

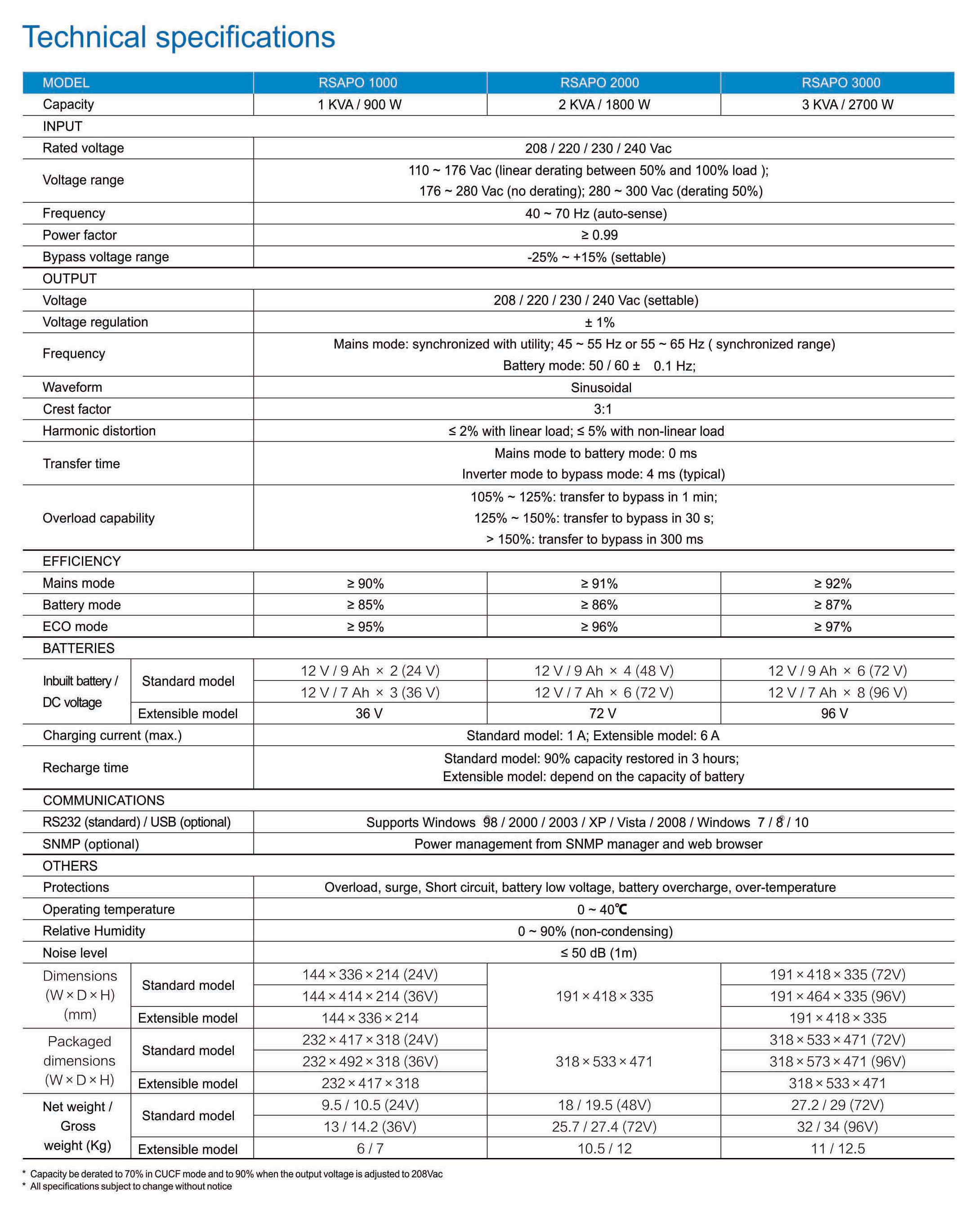

RSalpha Pro 1KVA ~ 3KVA
FEATURES
True On-line double conversion technology
Alpha Pro series is on-line double conversion UPS which provides ideal electrical output performance with continuous and uninterruptable high quality power in switching from AC to DC or DC to ACDSP-Digital signal processor technology
Alpha Pro uses advanced USA native CPU chip with ability of faster and more accurate processing of signal data, keep UPS running in a high efficiency and low energy wasting condition. Providing you with rapid failure response and useful failure code for mechanical maintenance, raise MTBF, decrease MTTR.High power factor
Alpha Pro input power factor closes to 1 with power factor correction, and output power factor 0.9 enables UPS to deliver more power and increase the load capacity by 13% compared with traditional productsWide input voltage range & auto sensing frequency
Alpha Pro has excellent voltage regulation ability with an ultra-wide input voltage range from 110 – 300 Vac, and auto-sensing 50 Hz / 60 Hz frequency to meet all kinds of grid environment.Cold start capability
In the absence of any AC input, the cold start function allows users to start the UPS with the batteries, and without any damage to them or the circuits.Multiple operating modes
Different operating modes (Line mode, Bypass mode, Stdby mode, Battery mode, ECO mode, CUCF/Frequency conversion mode and Fault mode) can be programmed according to user requirements.Auto Power-on and Shut-down function
Under low or no-load conditions, the UPS will automatically shut down and switch to bypass mode, when the load is enabled again, the UPS will be automatically turned on and switch back to the mains power mode. This energy saving feature is great suitable for situations like office loads various from day and night.Excellent performance and reliability
Complete hardware and software protection Alpha Pro is equipped with over voltage, overload, surge, short circuit, over temperature protection, IGBT pulse by pulse current limiting protection, greatly ensure the stability and reliability of the system. Power- on self test The UPS performs advanced self-diagnostics to ensure the functionality of the UPS system and batteries, and to anticipate events before they occur. Low noise level Load-based fan speed control makes UPS produce low noiseAdvanced Battery Management (ABM)
Battery test function and deep discharge protection The system has automatic / manual battery test function and deep discharge protection to optimize battery life. At the end of battery discharge, the system will pre-alarm to remind users Advanced charging technology- Automatic charging in OFF mode
- By monitoring and control the battery periodically self-test, automatically equalizing charge and floating charge control, effectively extending the battery life
- By powerful battery charger with rapid and stable charging technology, 90% capacity can be restored in 3 hours for standard model UPS, and higher charging current is available for extensible model
RSalpha Pro 1KVA ~ 3KVA

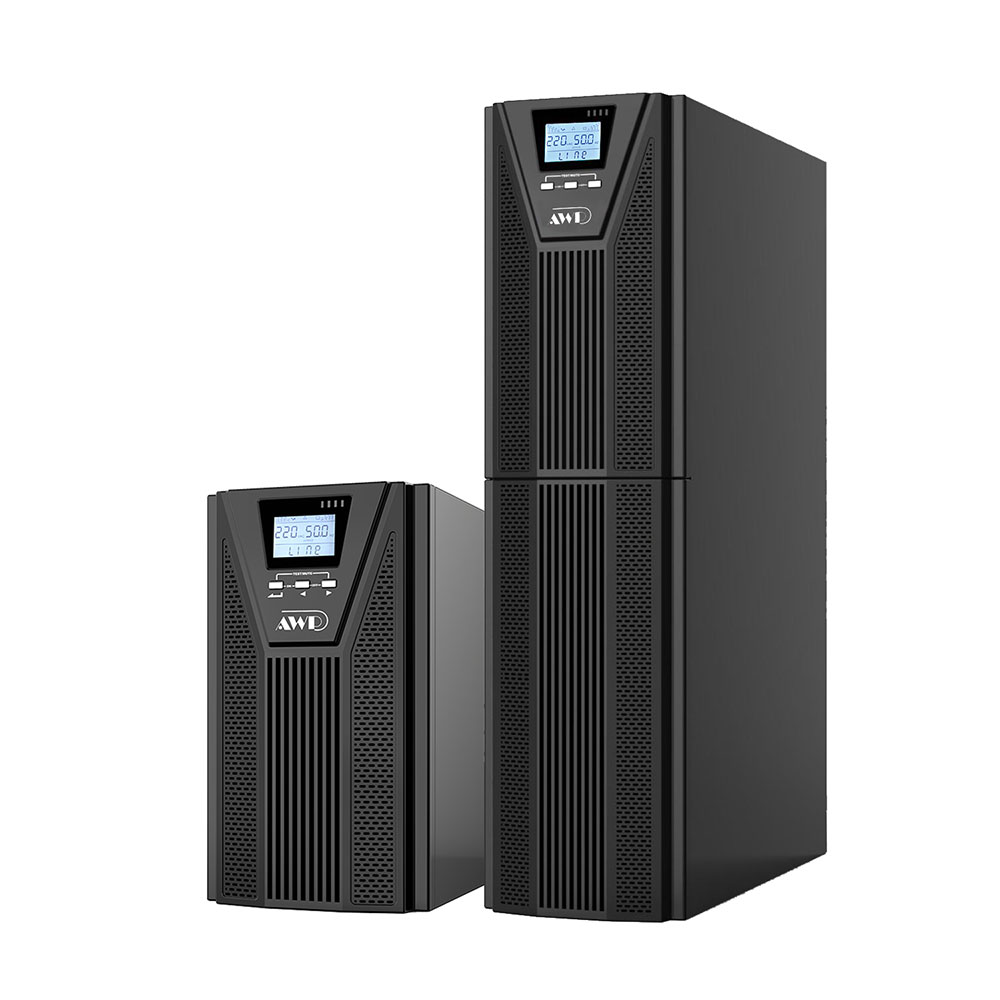

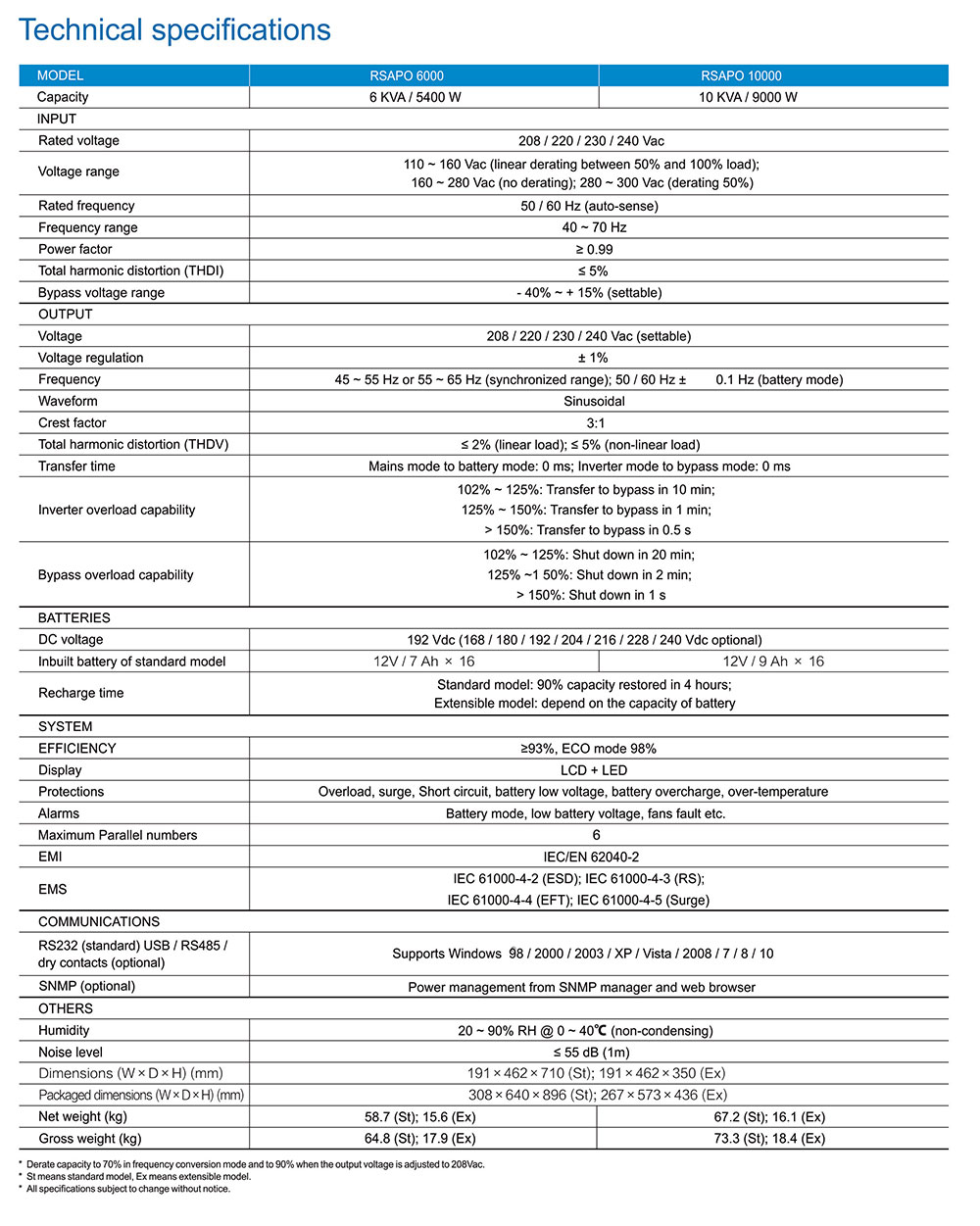

RSalpha Pro 6KVA ~ 10KVA
FEATURES
High reliability
- Advanced DSP digital control technology is applied to rectifier and inverter.
- Fan speed varies intelligently with temperature, reducing noise and increasing its service life
- Rear ventilation design, fan operating in slow speed, UPS being able to work for a long time in harsh environment.
- Effective software and hardware protection function, powerful self-diagnostic function.
- Advanced digital parallel redundant configuration for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems.
High availability
- Wide input voltage range, self-adaptive 50Hz /60 Hz grid system, suitable for various grid environments
- Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery.
- Output power factor improved from 0.8 to 0.9, load-carrying capacity increased by 13%.
- Flexible and optimized battery number design (14 ~ 20pcs optional) for more economical battery usage and costs with different DC voltage (168 / 180 / 192 / 204 / 216 / 228 / 240 Vdc optional), and two UPS models (Standard model or Extensible model) for options.
- Doubling the battery charging speed, 90% capacity restored in 4 hours for standard model UPS.
- Cold start: Ability to switch on the UPS with batteries in the absence of mains power.
- UPS power supply mode has no transfer time to ensure uninterruptible power.
- Configurable switching time from battery mode to mains mode when mains power is restored, reducing the impact on power grid or generator
- Frequency conversion mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
High usability
- LCD+LED display, multi-functional keys operation, friendly human-machine interface.
- Powerful background software for parameters configuration and online updating.
- Compact internal layout, miniaturized the complete unit for small footprint
High intelligence
- Advanced multi-platform communications: standard RS232, optional USB, RS485, SNMP and dry contacts communication interfaces are used for monitoring UPS running status. Among them, SNMP is for remote network monitoring and management, by which can configure regular battery self test.
- Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, improving the reliability of charger and extending battery service life by 50%.
Energy conservation and environment protection
- Active power factor correction (APFC), input power factor up to 0.99.
- Work efficiency up to 98% in ECO mode.
- Auto power ON/OFF according to the load capacity set by users.
RSalpha Pro6 ~ 10KVA

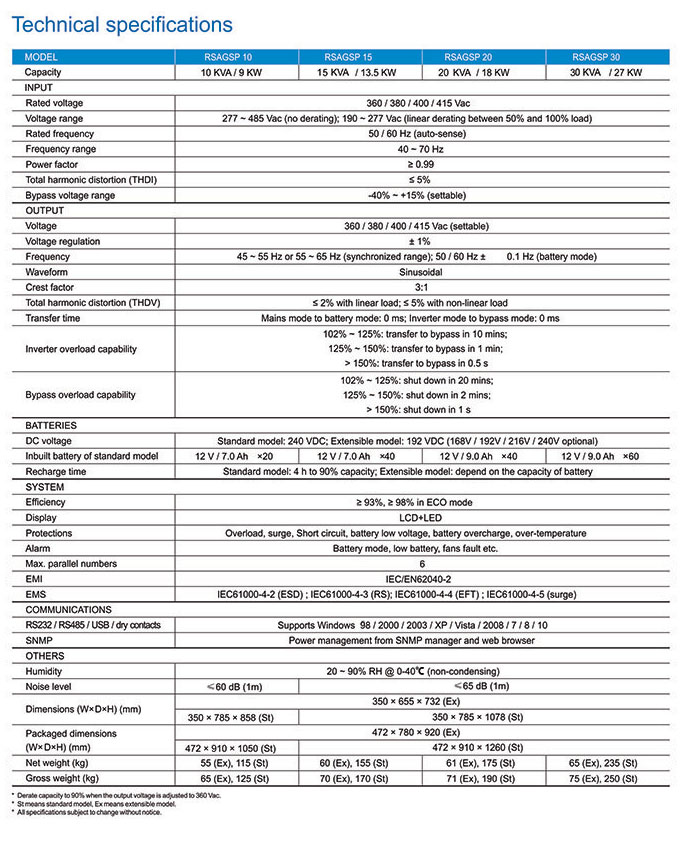

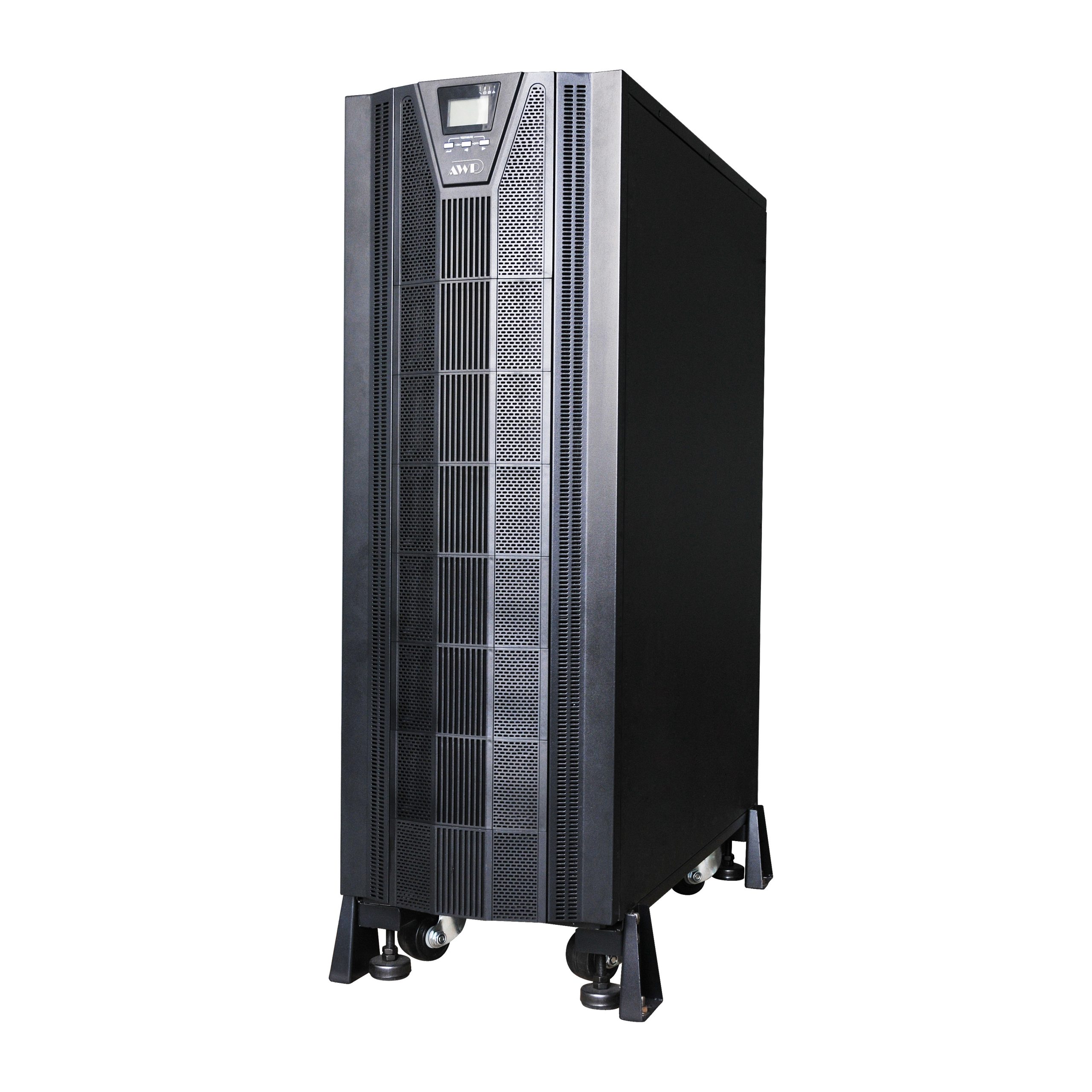

RSaegis Pro 10KVA ~ 30KVA
FEATURES
High reliability
- Advanced DSP digital control technology is applied to rectifier and inverter
- Fan speed varies intelligently with temperature, reducing noise and increasing its service life
- Rear ventilation design, fan operating in slow speed, UPS being able to work for a long time in harsh environment
- Effective software and hardware protection function, powerful self-diagnostic function and abundant historical log
- Advanced digital parallel redundant configuration for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems
High availability
- Wide input voltage range, self-adaptive 50Hz /60 Hz grid system, suitable for various grid environments
- Linear derating in low voltage input, reducing battery discharging time, extending the service life of battery
- Dual input design, independent bypass available
- Output power factor improved from 0.8 to 0.9, load-carrying capacity increased by 13%
- Flexible and optimized battery number design with different DC voltage for more economical battery usage and costs (168/192/216/240Vdc optional), and two UPS models (Standard model or Extensible model) for options
- Doubling the battery charging speed, 90% capacity restored in 4 hours for standard model UPS, and higher charging current available for extensible model
- Cold start: Ability to switch on the UPS with batteries in the absence of mains power
- UPS power supply mode has no transfer time to ensure uninterruptible power
- Configurable switching time from battery mode to mains mode when mains power is restored, reducing the impact on power grid or generator
- Frequency conversion mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
High usability
- LCD+LED display, multi-functional keys operation, friendly human-machine interface
- Powerful background software for parameters configuration, online updating
- Compact internal layout, miniaturized the complete unit for small footprint
- Standard Emergency Power Off (EPO), standard maintenance bypass
High intelligence
- Advanced multi-platform communications: standard RS232 & USB, optional RS485, SNMP and dry contacts communication interfaces are used for monitoring UPS running status. Among them, SNMP is for remote network monitoring and management, by which can configure regular battery self test
- Advanced battery management (ABM), automatic floating / equalizing charge control, charger dormancy control, improving the reliability of charger and extending battery service life by 50%
Energy conservation and environment protection
- Active power factor correction (APFC), input power factor up to 0.99
- Work efficiency up to 98% in ECO mode
- Auto power ON/OFF according to the load capacity set by users
RSaegis Pro 10KVA ~ 30KVA

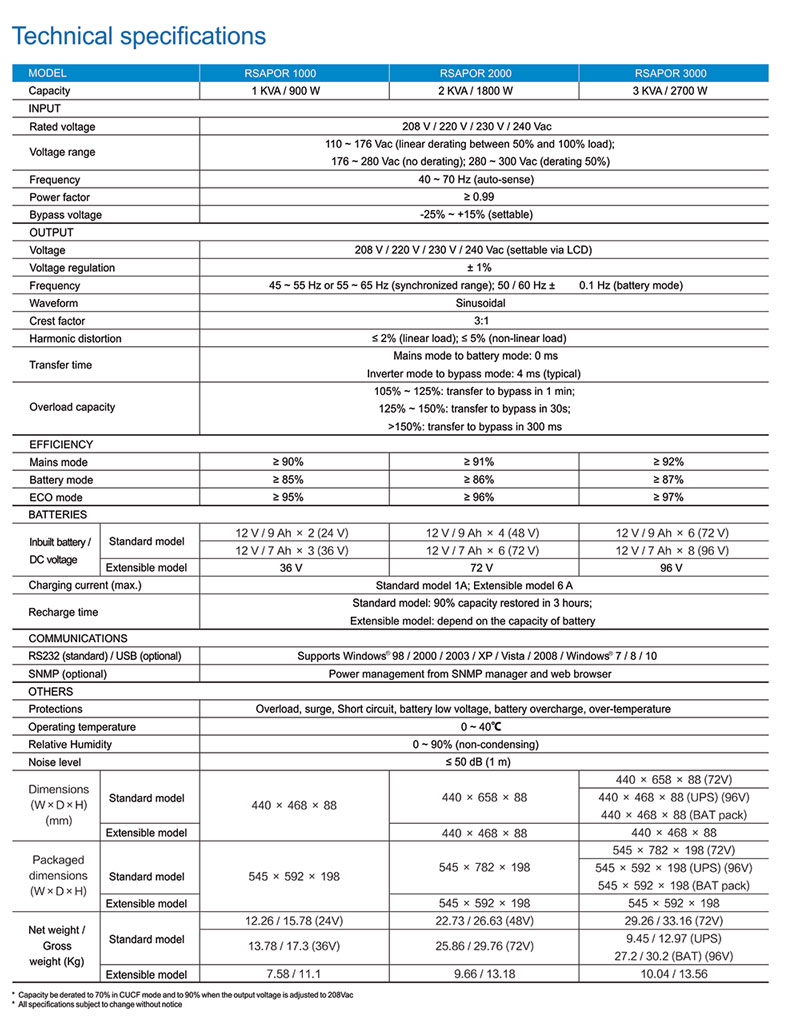

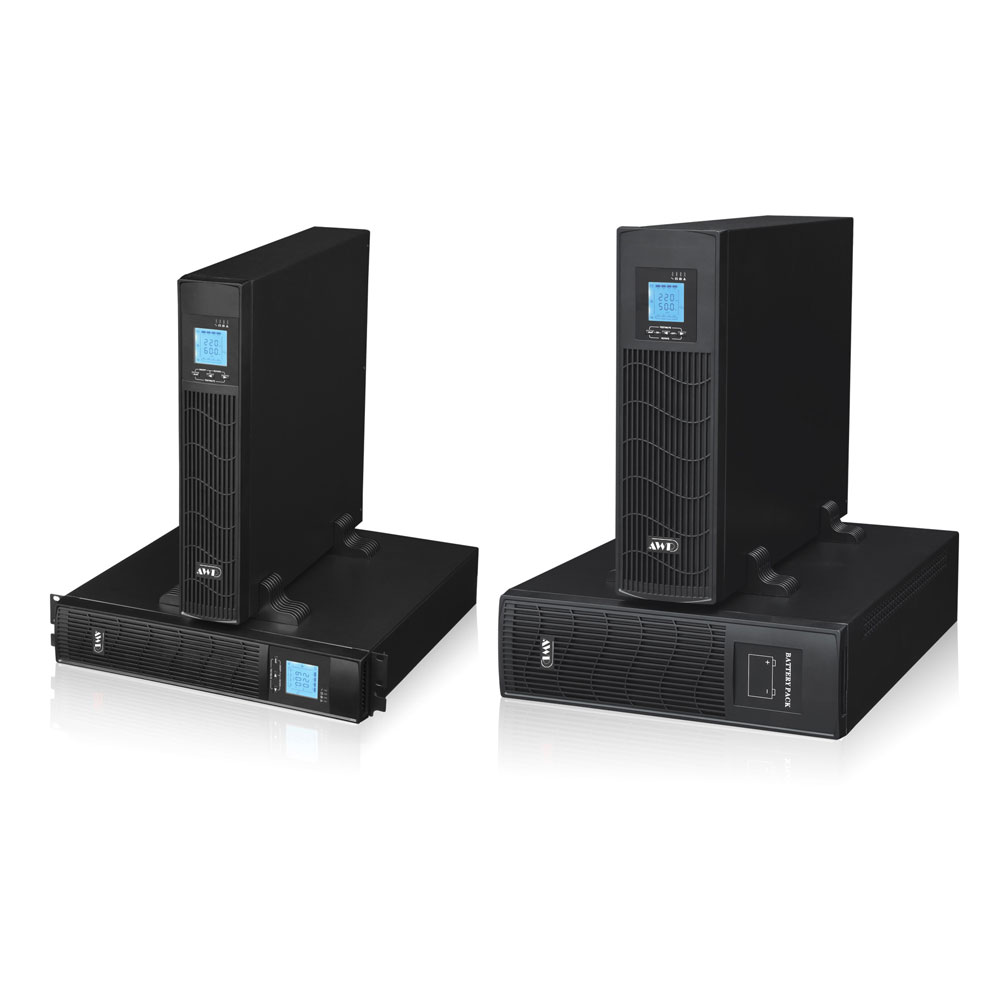

RSalpha Pro RT 1KVA ~ 3KVA
FEATURES
True On-line double conversion technology
Alpha Pro is an On-line double conversion UPS which provides ideal electrical output performance with continuous and uninterruptable high quality power in switching from AC to DC or DC to AC.
DSP-Digital signal processor technology
Alpha Pro uses advanced USA native CPU chip with ability of faster and more accurate processing of signal data, keep UPS running in a high efficiency and low energy wasting condition. Providing you with rapid failure response and useful failure code for mechanical maintenance, raise MTBF, decrease MTTR.
Tower / Rack convertible and simplified installation
Users can easily install the UPS system as either a tabletop or a rack mounted device by utilizing the easy-shift LCD display
High power factor
Alpha Pro input power factor closes to 1 with power factor correction, and output power factor 0.9 enables UPS to deliver more power and increase the load capacity by 13% compared with traditional products.
Wide input voltage range & auto sensing frequency
Alpha Pro has excellent voltage regulation ability with an ultra-wide input voltage range from 110 – 300 Vac, and auto-sensing 50 Hz / 60 Hz frequency to meet all kinds of grid environment.
Cold start capability
In the absence of any AC input, the cold start function allows users to start the UPS with the batteries, and without any damage to them or the circuits
Multiple operating modes
Different operating modes (Line mode, Bypass mode, Stdby mode, Battery mode, ECO mode, CUCF/Frequency conversion mode and Fault mode) can be programmed according to user requirements.
Auto Power-on and Shut-down function
Under low or no-load conditions, the UPS will automatically shut down and switch to bypass mode, when the load is enabled again, the UPS will be automatically turned on and switch back to the mains power mode. This energy saving feature is great suitable for situations like office loads various from day and night.
Excellent performance and reliability
Complete hardware and software protection
Alpha Pro is equipped with over voltage, overload, surge, short circuit, over temperature protection, IGBT pulse by
pulse current limiting protection, greatly ensure the stability and reliability of the system.
Power- on self test
The UPS performs advanced self-diagnostics to ensure the functionality of the UPS system and batteries, and to
anticipate events before they occur.
Low noise level
Load-based fan speed control makes UPS produce low noise
Advanced Battery Management (ABM)
Battery test function and deep discharge protection
The system has automatic / manual battery test function and deep discharge protection to optimize battery life. At the end of battery discharge, the system will pre-alarm to remind users.
Advanced charging technology
- Automatic charging in OFF mode
- By monitoring and control the battery periodically self-test, automatically equalizing charge and floating charge control, effectively extending the battery life.
- By powerful battery charger with rapid and stable charging technology, 90% capacity can be restored in 3 hours for standard model UPS, and higher charging current is available for extensible model.
Flexible and optimized battery number design More economical battery usage and costs with different DC voltage (24 V / 36 V / 48 V / 72 V / 96V) and two UPS models (Standard model or Extensible model) for options.
RSalpha Pro RT 1KVA ~ 3KVA

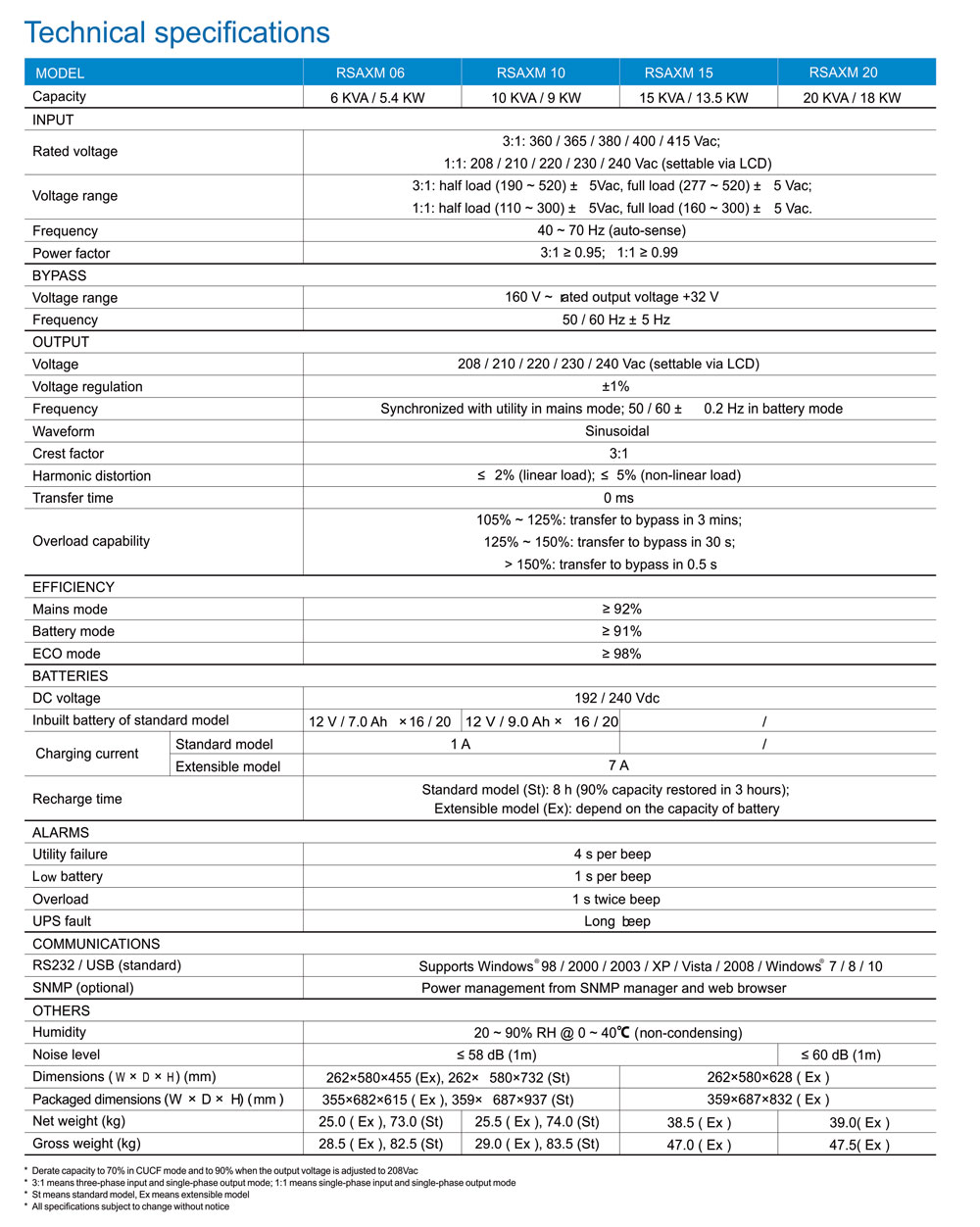

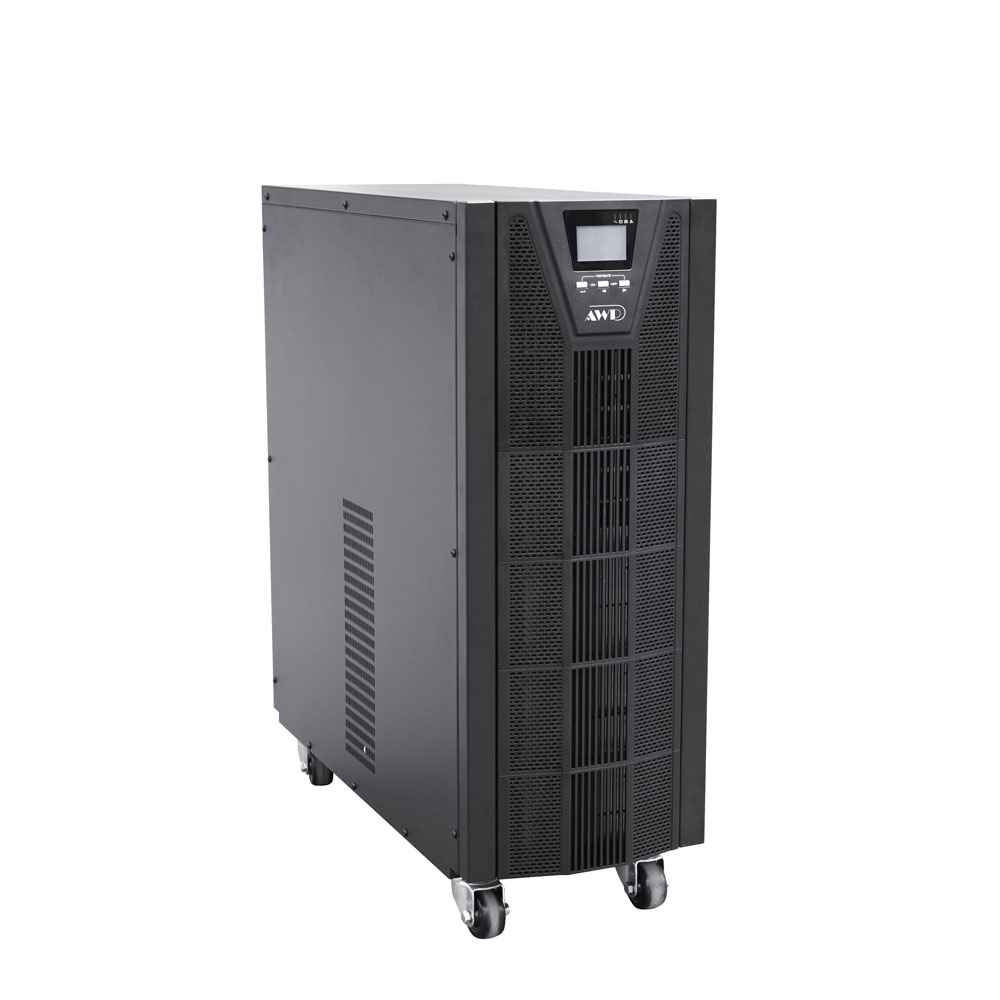

RSaxiom 6KVA ~ 20KVA
FEATURES
- High frequency and true double-conversion
- DSP digital control technology
- Wide input voltage range (110V ~ 300V)
- Output power factor 0.9
- Optimized battery configuration: 192V / 240V
- Cold start
- Auto sensing frequency
- ECO mode operation for energy saving
- 50/60Hz frequency conversion mode
- Selectable output voltage via LCD
- Selectable battery shutdown voltage (EOD) via LCD
- Selectable input mode via LCD (3:1 or 1:1)
- Power-on self test
- Advanced battery management (ABM)
- Short circuit and overload protection
- Automatic charging in OFF mode
- Fan speed auto temperature varies
- Standard RS232 / USB communication port
- Standard emergency power off (EPO)
- Optional RS485 / SNMP / AS400 communication port
- Optional extension battery bank
- Optional battery temperature compensation
- Optional built-in isolation transformer
- Optional manual bypass
- Optional N+X redundancy parallel

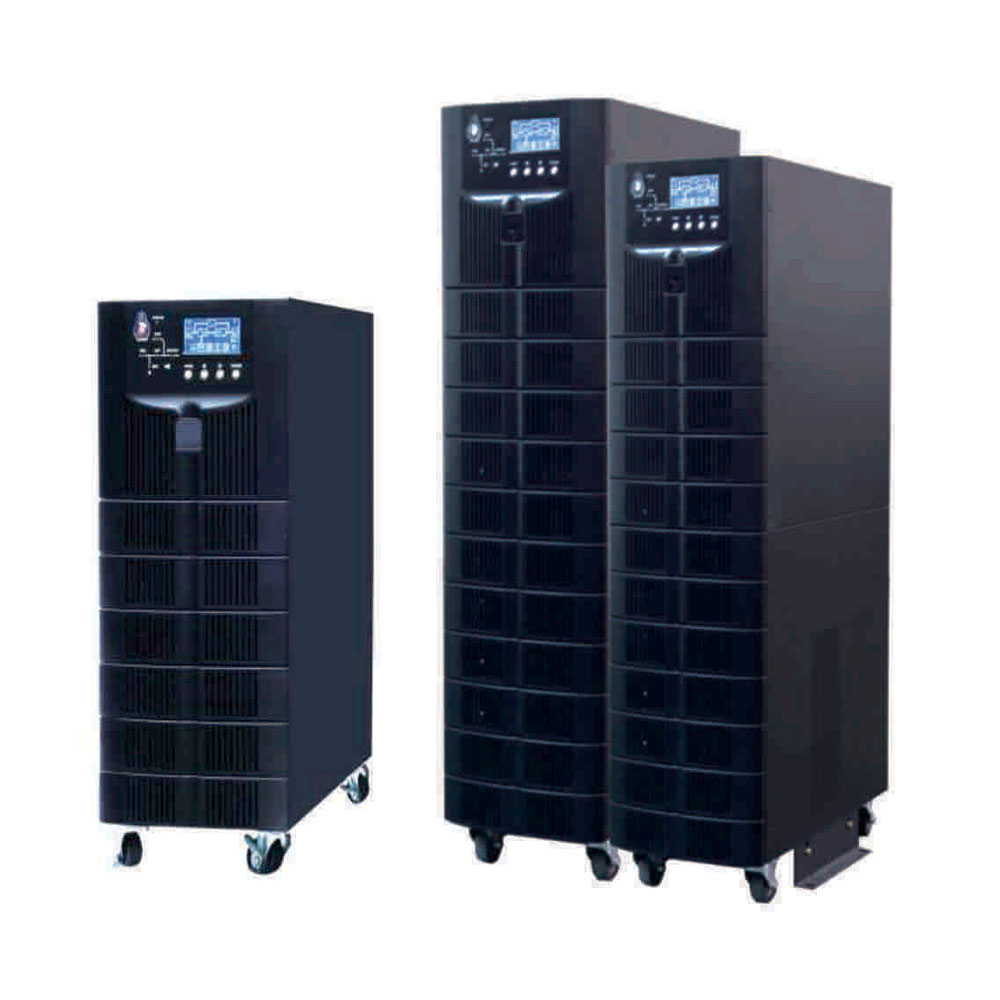

RSaxiom 6KVA ~ 20KVA
RSaxiom 6KVA ~ 20KVA
FEATURES
High reliability
- Advanced DSP digital control technology bring ACE UPS high precision, fast speed, simple control circuit and high reliability
- Standard configuration with output isolation transformer, which prevent the harm to equipment caused by DC component of UPS output voltage, effectively reduce neutral to earth voltage of output and effectively decrease the direct interference from the harmonic currents of loads to improve the UPS reliability
- High overload capability (up to 150%)
- Bypass powered by independent power supply, and inside using dual DSP redundant design. When the main control system is abnormal or fails, the bypass system can still work normally to ensure uninterruptible power supply to loads
- Superior protection (surge, short-circuit, overvoltage, under-voltage, over-charge, reverse connection protection etc), especial IGBT drive circuit and IGBT overcurrent soft-shutdown technology greatly improve the reliability and safety of the inverter
- Advanced parallel redundant configuration with current sharing control technology which not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems
High usability and availability
- Single / single-phase models, and three / single-phase models for 380 / 400 / 415 V, 50 / 60 Hz grid system
- Wide input voltage and input frequency range make the UPS convenient to connect the generator or other power-generation equipment
- Strong compatibility, suitable for all kinds of loads (resistive, inductive, capacitive and non-linear loads)
- Dual input and hot standby in series make the system more reliable and available
- Battery cold start and mains power start are available. In the absence of mains power, battery cold start function allows users to start the UPS with the batteries to meet the emergency, and in the absence of batteries, users can start the UPS with the utility power and use it as high-precision regulated power supply
- LCD+LED display with friendly user interface and multi-functional button operation
- Abundant historical log available for future to retrieve and when fault occurs the fault code display on the screen will help maintenance personnel exclude the cause of issue
High intelligence
- Advanced multi-platform communications: standard RS232 / USB, optional RS485 / dry contacts, SNMP communication interfaces are used for monitoring UPS running status
- Advanced intelligent battery management technology with powerful charging capability and flexible charging parameters setting: 2 A / 4 A / 6 A / 8 A / 10 A / 12 A selectable (standard configuration), 14 A / 16 A / 18 A / 20 A / 22 A / 24 A selectable (optional configuration)

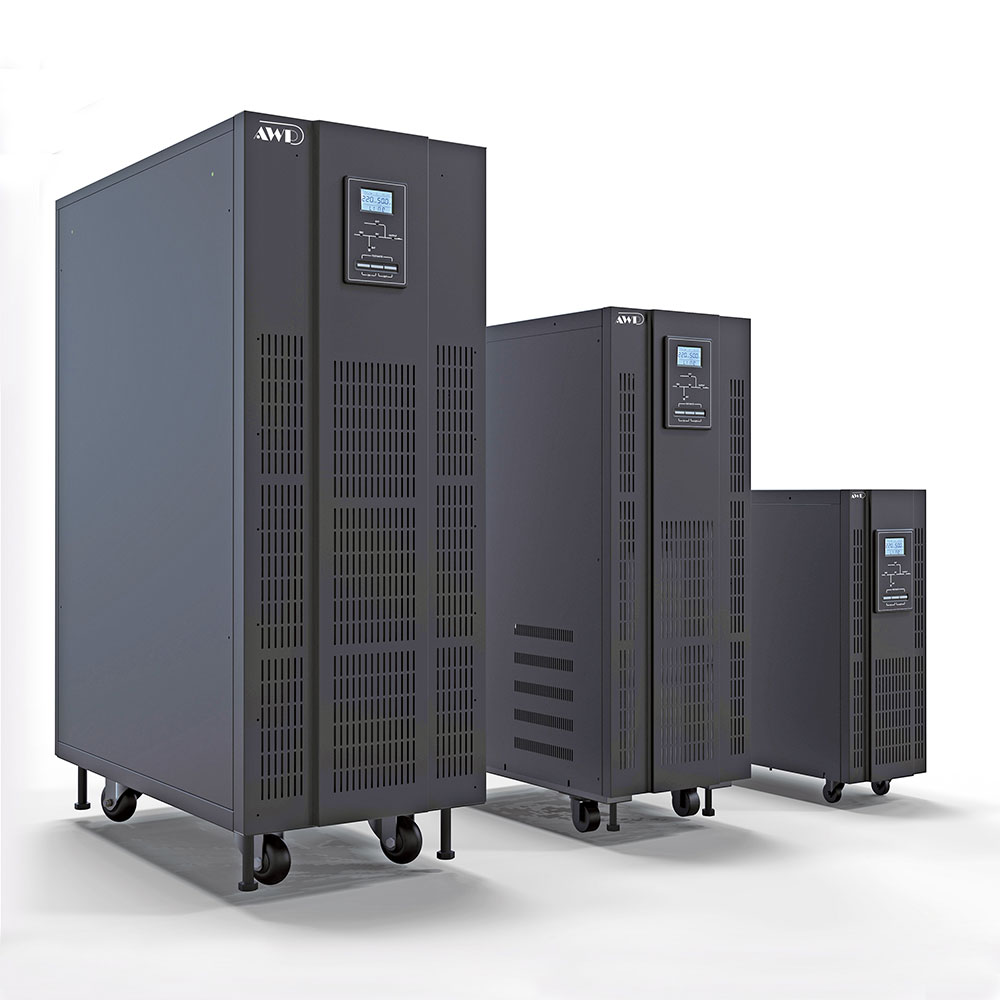

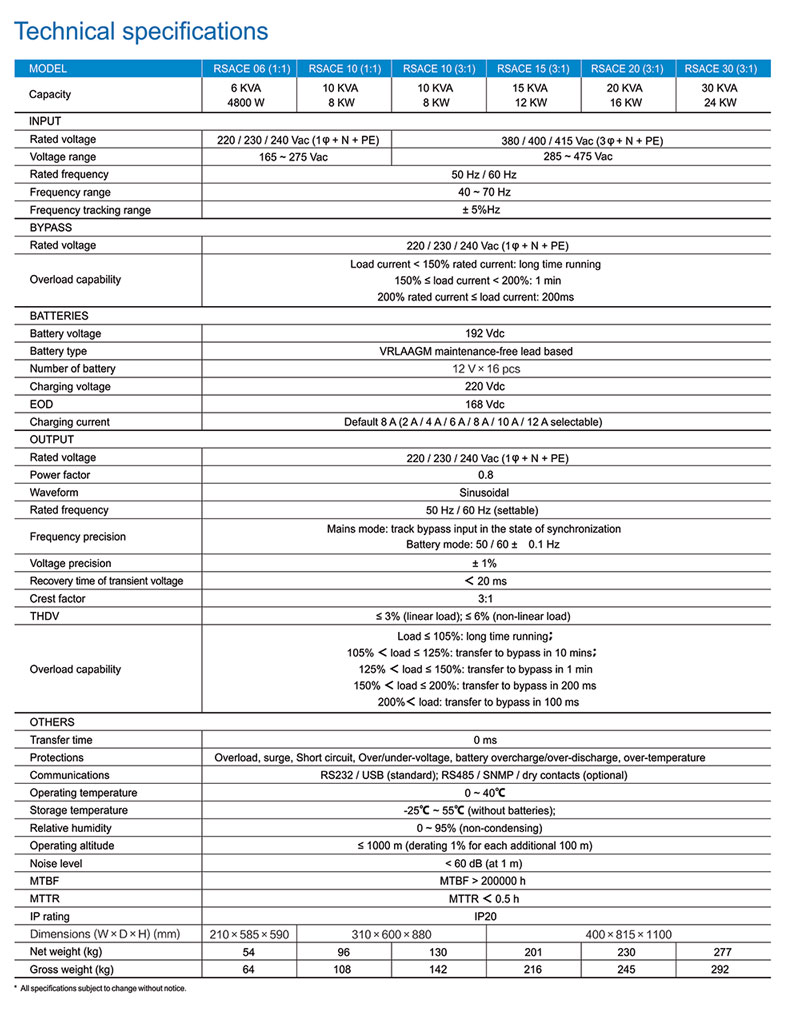

RSace 6KVA ~ 10KVA (1:1) 10KVA ~ 30KVA (3:1)

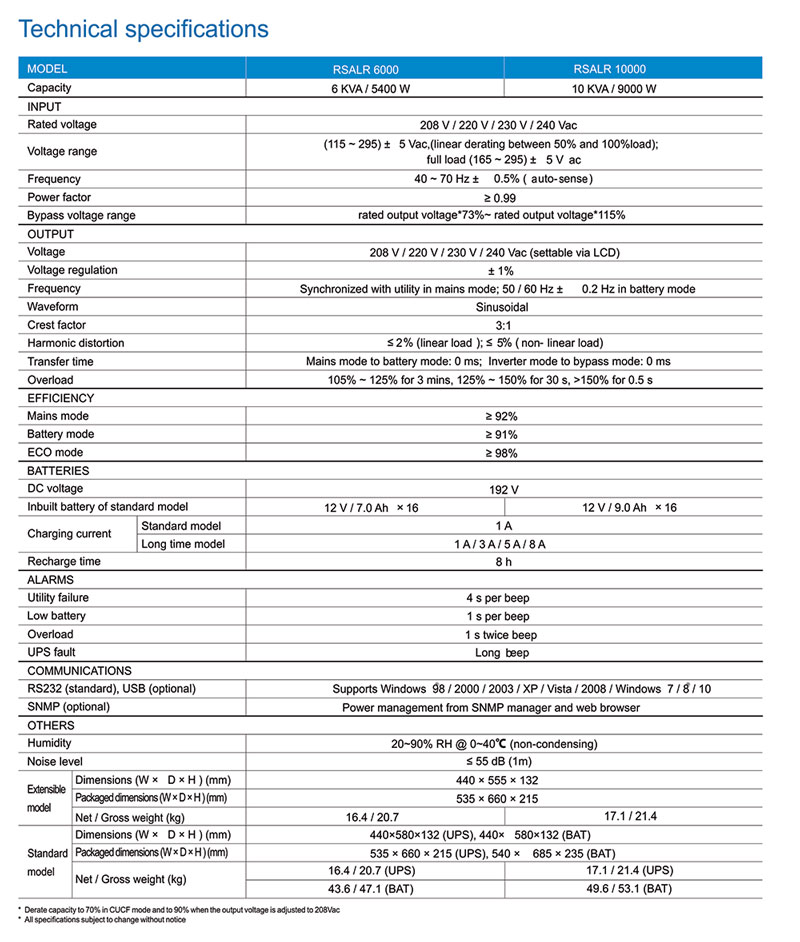

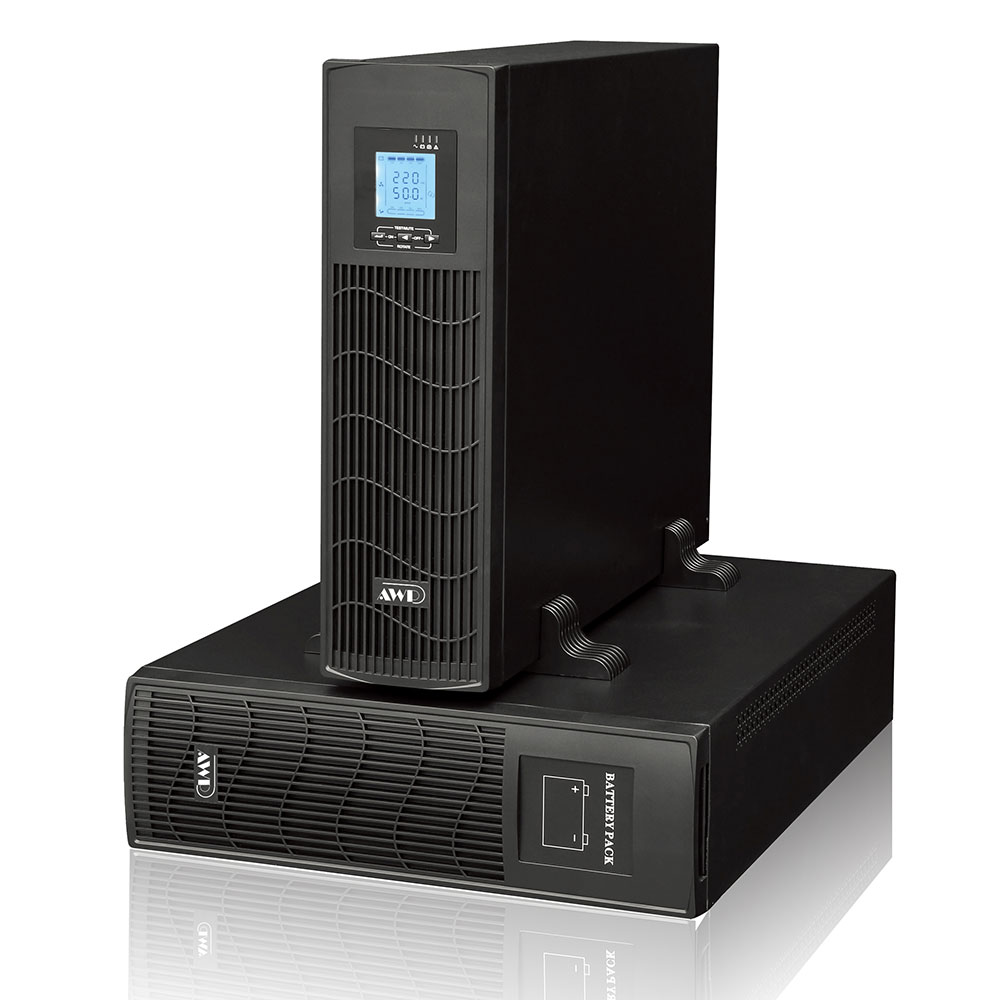

RSalpha RT 6KVA ~ 10KVA
FEATURES
- Rack / Tower design
- High frequency and true double-conversion
- High frequency and true double-conversion
- DSP digital control technology
- Input power factor correction (PFC)
- Wide input voltage range (110 V ~ 300 V)
- Output power factor 0.9
- Cold start
- Auto sensing frequency
- ECO mode operation for energy saving
- Selectable output voltage via LCD
- 50 Hz / 60 Hz frequency convertion mode
- Selectable battery low voltage via LCD
- Power-on self test
- Advanced battery management (ABM)
- Short circuit and overload protection
- Automatic charging in OFF mode
- Fan speed auto control when varies
- Standard RS232 communication port and RJ45 protection
- Optional USB / SNMP communication port
- Optional emergency power off (EPO)
- Optional extension battery bank
- Optional N+X redundancy parallel
- Optional external maintenance bypass
RSalpha RT 6KVA ~ 10KVA

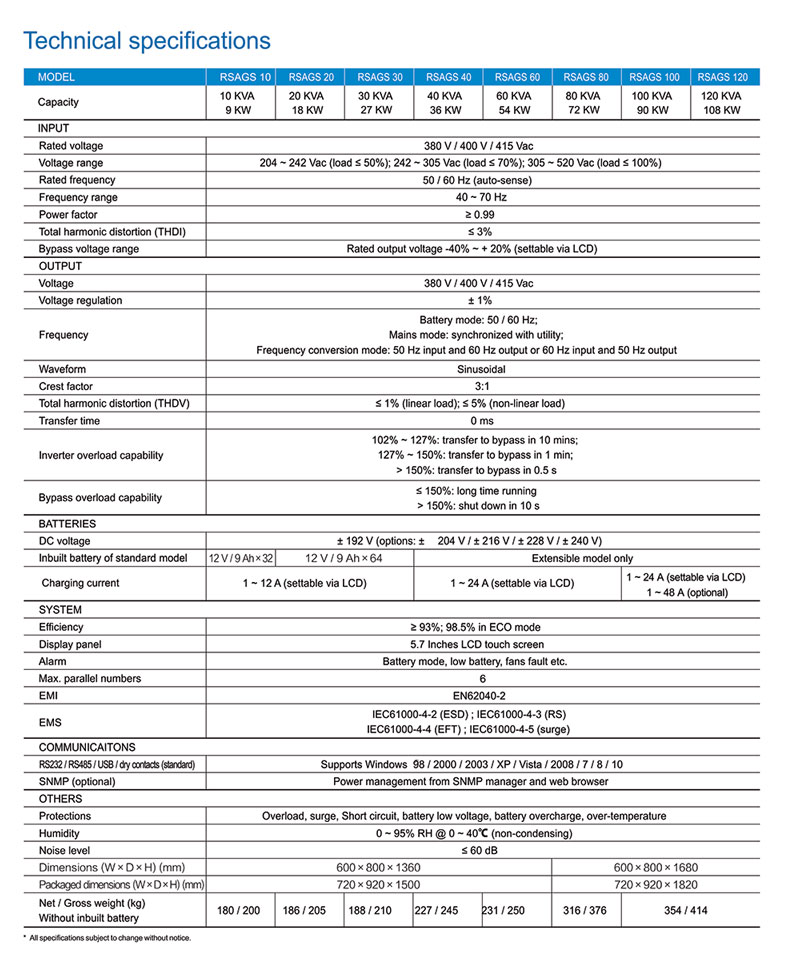

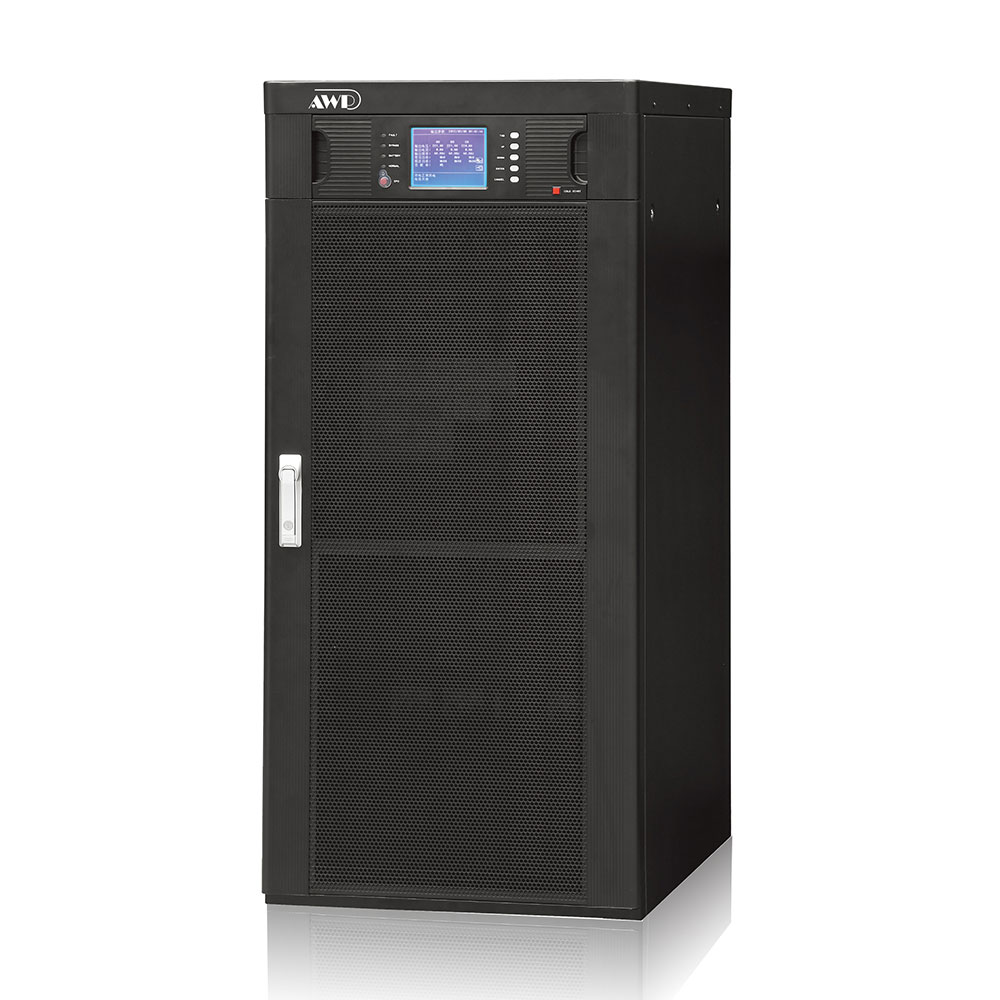

RSaegis 10KVA ~ 120KVA
FEATURES
High reliability
- Advanced DSP digital control technology
- True On-line double conversion technology with strong carrying capacity
- Modular design with high reliability and easy to maintenance
- Effective software and hardware protection function, robust self-diagnostic function and abundant historical log for future check
- Three-level password control technology, including the power-on password, user password and maintenance password contro
- Advanced digital parallel redundant configuration (up to 6 units) for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems
High availability
- Dual input distribution makes system availability higher
- Wide input voltage range, self-adaptive 50Hz /60 Hz grid system, suitable for various grid environments
- Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery
- Input power factor closes to 1, harmonic distortion of current is very low, and output power factor 0.9 enable UPS to deliver more power and increase the load capacity
- Frequency conversion mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
- Users can choose share battery pack to save cost or separate battery pack for different UPS with longer automation time
- Battery cold start and mains restoration auto-restart are available
- Optional built-in output isolation transformer meets customer’s special requirement on electric isolation on UPS output
High usability
- 5.7 inches LCD touch screen, multi-functional keys operation, friendly human-machine interface
- Robust background software for parameters configuration, online updating
- Compact internal layout, miniaturized the complete unit for small footprint
- Standard Emergency Power Off (EPO)
High intelligence
- Advanced multi-platform communications: standard RS232 / USB / RS485 / dry contacts, optional SNMP communication interfaces are used for monitoring UPS running status
- Advanced intelligent battery management technique, digitized charger with flexible charger parameters setting and battery configuration (32 / 34 / 36 / 38 / 40 pcs selectable)
- When the batteries are out of warranty, the system will remind you
Energy conservation and environment protection
- Active power factor correction (APFC), input power factor up to 0.99
- Work efficiency up to 98.5% in ECO mode
RSaegis 10KVA ~ 120KVA

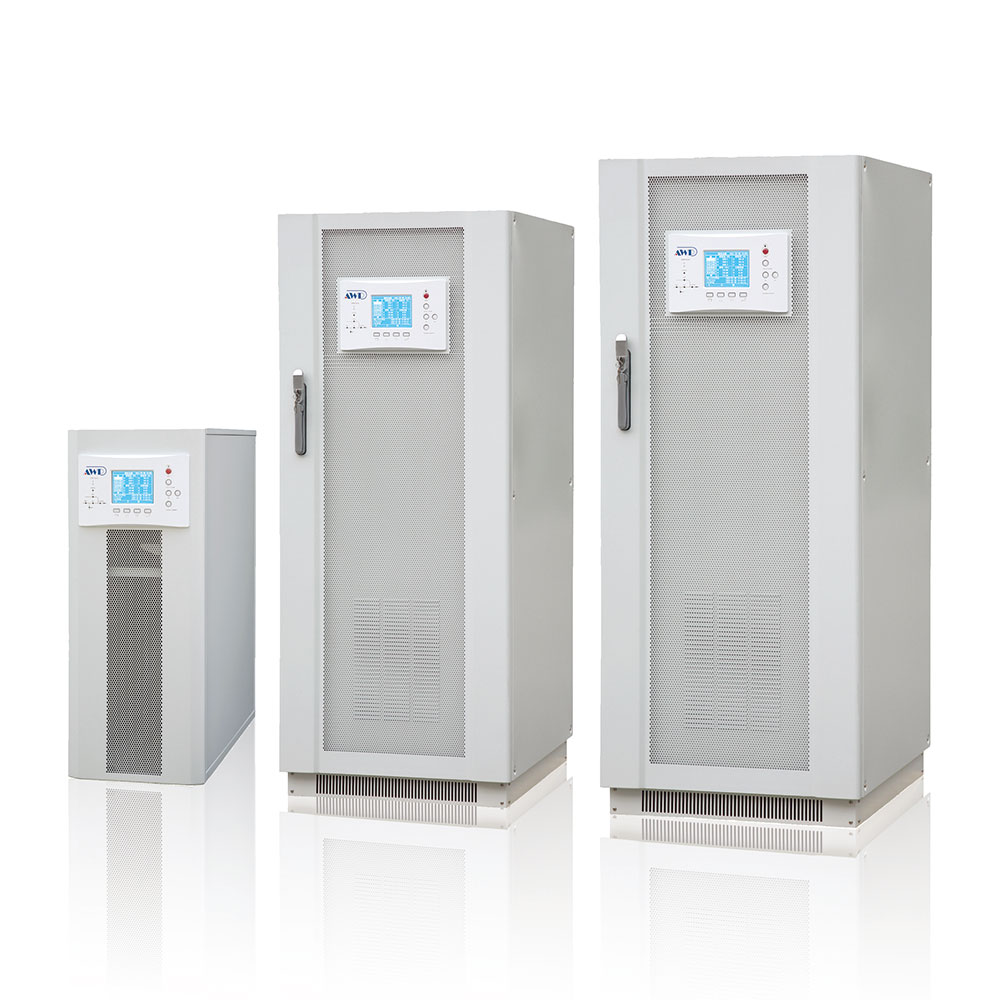

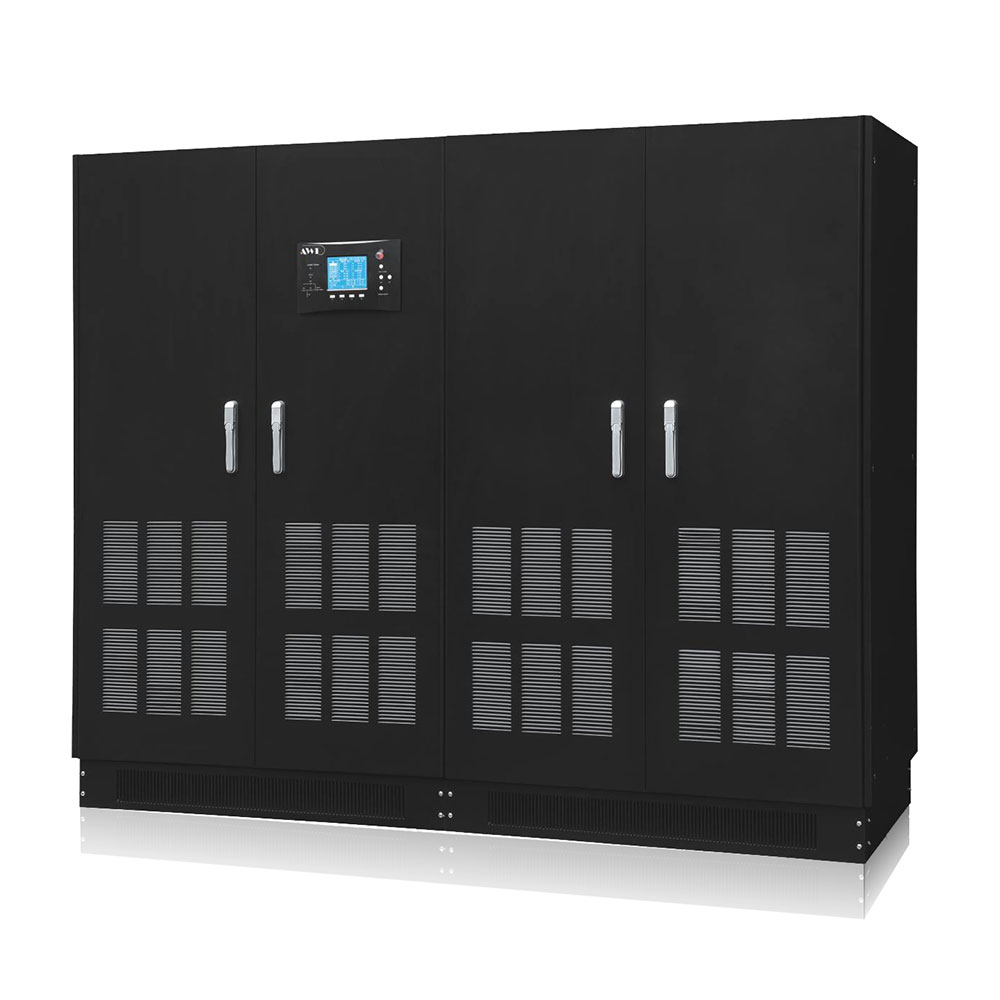

RSarmor 10KVA ~ 120KVA
FEATURES
High reliability
- Intelligent digital control
- Permissible 100% load unbalance
- Built-in output isolation transformer
- Full isolation of input and output avoid risk of DC sneaking into loads
- High overload capability
- Extra long MTBF (> 200,000h) and short MTTR (< 0.5h)
- Batteries are directly connected to BUS line, and output has strong impact resistance capacity
- Intelligent self-diagnosing function and superior protections (short-circuit, overload, over-temperature, overvoltage, under-voltage, over-current, battery low voltage and fan failure protections)
- Advanced parallel redundant configuration (up to 6 units) for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems
- ECO mode and EPO (Emergency Power Off) mode
High usability and availability
- Three / three-phase models for 380 / 400 / 415 V, 50 / 60 Hz grid system
- Unique ventilation design, compact whole structure for small footprint
- Similar modular design makes field maintenance quick and easy
- Front access makes maintenance and replacement easy (50 ~ 120KVA)
- Abundant historical log (10000 records) available for future check
RSarmor 10KVA ~ 120KVA
RS11 series Rack Online UPS 1-10kVA (220V/230V/240V)
FEATURES
Common features for 1-10KVA
- Wide range of input voltage while input PF>99%
- 19” standard cabinet and battery cabinet
- Full protection of overvoltage, circuit short and over temperature
- LCD/LED display, monitoring all the operation status
- Automatic fan speed adjustment
- Abundant interface: RS232,USB, SNMP, Intelligent Card
Unique features for 6-10KVA
- High efficiency, up to 95%
- kVA=kW, output PF=1
- Intelligent charging management, effectively improving the life time of battery
- 3 level of technology, compatible with complicated load
- Self-aging function
RS11 series Rack Online UPS 1-10kVA (220V/230V/240V)
RS11 series Rack Online UPS 1-3kVA (220V/230V/240V)
FEATURES
- Wide range of input voltage while input PF>97%
- Output PF of 0.9，more powerful load capability
- Full protection of overvoltage, circuit short and over temperature
- LCD/LED display, monitoring all the operation status
- Auto fan speed adjustment
- In-built output transformer for TX branch
RS11 series Rack Online UPS 1-3kVA (220V/230V/240V)
RSarmor 160KVA ~ 600KVA
FEATURES
High reliability
- Intelligent digital control
- Permissible 100% load unbalance
- Built-in output isolation transformer
- Full isolation of input and output avoid risk of DC sneaking into loads
- Extra long MTBF (> 200,000 h) and short MTTR (< 0.5 h)
- Latest IGBT rectifier technology, high input power factor up to 0.99 and low harmonic current to provide high efficiency, energy saving and environmental protection
- High overload capability
- High efficiency at light load, reducing operating cost
- ECO mode and EPO (Emergency Power Off) mode
- Batteries are directly connected to BUS line, and output has strong impact resistance capacity
- Intelligent self-diagnosing function and superior protections (short-circuit, overload, over-temperature, overvoltage, under-voltage, over-current, battery low voltage and fan failure protections)
- Advanced parallel redundant configuration (up to 6 units) for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems
High usability and availability
- Three / three-phase models for 380 / 400 / 415 V, 50 / 60 Hz grid system
- Excellent compatibility with generators
- Unique ventilation design, compact whole structure for small footprint
- Similar modular design makes field maintenance quick and easy
- Front access makes maintenance and replacement easy, being placed up against the wall save room space
- Two cable entry systems: bottom cable entry and side cable entry
- Abundant historical log (10000 records) available for future check
- Flexible and optimized battery number design (48 / 49 / 50 / 51 / 52pcs optional)
- Strong compatibility, suitable for all kinds of loads (mixed, resistive, inductive, capacitive and non-linear loads)
- 5.7 inches LCD touch screen with friendly human-machine interface, supports touch screen and multifunctional button operation
- Battery cold start (optional): in the absence of mains power, battery cold start function allows users to start the UPS with the batteries to meet the emergency
RSarmor 160KVA ~ 600KVA
RS11 series Tower Online UPS 6-10kVA (220V/230V/240V)
FEATURES
- High efficiency, up to 95%
- kVA=kW, Output PF=1
- 3 level of technology, compatible with complicated load
- Self-aging function
- Intelligent charging management, effectively improving the life time of battery
- Smaller size with higher power density
- Parallel up to 8 units
RS11 series Tower Online UPS 6-10kVA (220V/230V/240V)
RS11 series Tower Online UPS 6-20kVA (220V/230V/240V)
FEATURES
- Wide range of input voltage and high input power factor
- Output PF of 0.9
- Full protection of overvoltage, circuit short and over temperature
- LCD display, monitoring all the operation status
- Auto fan speed adjustment
- Abundant interface：RS232,USB, SNMP, Intelligent Card
- Inbuilt output transformer
RS11 series Tower Online UPS 6-20kVA (220V/230V/240V)
RS31 series Tower Online UPS 10-40kVA (220V/230V/240V)
FEATURES
- Wide range of input voltage and high input power factor
- Output PF of 0.9
- Full protection of overvoltage, circuit short and over temperature
- LCD display, monitoring all the operation status
- Auto fan speed adjustmen
- Abundant interface：RS232,USB, SNMP, Intelligent Card
RS31 series Tower Online UPS 10-40kVA (220V/230V/240V)
RS33-TX series Tower Online UPS 10-40kVA (380V/400V/415V)
FEATURES
- In-built galvanic isolation transformer
- High input PF＞0.99;Input current THDi＜4%
- Muti-protection, over-temperature protection with 8 sensors, over-load, battery under voltage, fan failures, short-circuit
- Four circuit breakers, providing full protection when fault happens
- Battery cold start
- Battery management: smart charging control, auto maintenance, greatly extend the battery life
- Parallel up to 8 units
- Friendly operation interface, high-resolution LCD screen
RS33-TX series Tower Online UPS 10-40kVA (380V/400V/415V)
RS33 series Tower Online UPS 10-40kVA (380V/400V/415V)
FEATURES
- High efficiency, up to 96%
- High input PF＞0.99;Input current THDi＜4%
- Muti-protection, over-temperature protection with 8 sensors, over-load, battery under voltage, fan failures, short-circuit
- Four circuit breakers, providing full protection when fault happens
- Battery cold start
- Battery management with smart charging control, greatly extend the battery life
- Parallel up to 8 units
- Friendly operation interface, high-resolution LCD screen
RS33 series Tower Online UPS 10-40kVA (380V/400V/415V)
RS33 series Tower Online UPS 60-500kVA (380V/400V/415V)
FEATURES
- High efficiency, up to 96%
- High input PF＞0.99; Input current THDi＜3%
- Muti-protection, over-temperature protection with 8 sensors, over-load, battery under voltage, fan failures, short-circuit
- Battery cold start
- Battery management with smart charging control, greatly extend the battery life
- High power density
- Parallel up to 1500kVA
- Modular design of subsystem, convenient for field maintenance
- Friendly operation interface, color touch LCD screen
RS33 series Tower Online UPS 60-500kVA (380V/400V/415V)
FP SERIES
Features
- Double Conversion.
- Continuous battery charger and inverter for primary power path.
- Constant battery connection to inverter and load.
- Guarantee full power operation during power failure.
- No voltage drop and zero transfer time.
- Light weight unit
- Hot-swappable battery
- User-friendly Graphic LCD.
FP SERIES
Offline UPS/ Line Interactive UPS
RSaide 400VA – 2000VA
Features
Microprocessor-based digital control technology
Faster and more accurate processing of data
Wide Input Voltage Range
Aide UPS is capable of handling a wide input voltage range, supplying clean power in extreme circumstances. It has excellent voltage regulation ability with an ultra-wide input voltage range from 80 ~ 150Vac or 145 ~ 295Vac.
Built-in AVR
Aide UPS provides stable power to connected devices in unstable power conditions. It has built-in automatic voltage regulator, safety running between 165 ~ 275 Vac, reduces the using of battery, prolongs the life of battery, especially suitable for power fluctuations or poor power areas, supplying clean power in extreme circumstances.
Surge protection
Built-in precisely controlled power protection circuit, eliminate the interference of low voltage and surge, thus protecting the equipment against voltage spikes.
Short-circuit and overload protection
A short circuit is an abnormal connection between two nodes of an electrical circuit, and can cause huge damage to the UPS and any equipment attached to it. Aide circuit protection device will protect against potential short circuit damage, overheating, fire or even explosions. Aide is also equipped with overload protection, meaning that the fuse will automatically be triggered when a load exceeds its value. Both protection devices ensure the safety and reliability of the UPS and any equipment that is attached to it.
Auto sensing frequency
Aide UPS uses frequency adaptive technology. When UPS connect to mains with frequency 50HZ or 60HZ, the system will detect the frequency of mains power, and the output frequency will be the same as the detected frequency even when the mains power fails.
High-speed synchronous conversion
Aide system can automatically track the mains phase, to ensure that the inverter output voltage and mains voltage are identical, decrease the transfer time and surge voltage, minimize the interference to electrical equipment.
Cold start capability
In the absence of any AC input, the cold start function allows users to start Aide UPS with the batteries, and without any damage to them or the circuits. Users can easily configure the UPS, even if no AC input is available.
Intelligent battery management
- Aide series UPS adopt interactive design. When mains power is connected, Aide system will automatically charging the battery, even the UPS is OFF, to ensure the battery have enough power. When the mains power fails, Aide system will automatically switch to battery mode to provide sufficient runtime for the load saving data and safety shutdown.
- Aide UPS also be featured with battery temperature compensation to extend the battery life and three-stage charging to shorten recharge time, and with battery overcharge / over discharge protections as well.
Intelligent power ON/OFF
- When the mains power is restored after discharge of the batteries, Aide UPS will and automatically restart selfdiagnose to ensure the functionality of the UPS system and batteries.
- Aide system can detect load and . When the load is less automatically shut down in the no-load state (Optional) than 5%, the system detects that it is under idling/no-load state, it will automatically shut down in about one minute, reduce losses, effectively extending the life of batteries
RSaide 400VA - 2000VA
RSarcPure 500VA – 3000VA
FEATURES
Line interactive technology with pure sine wave output
Line-interactive tolerates continuous undervoltage, overvoltage and surges without consuming the battery power, and offers increased energy efficiency. The output waveform is a sine-wave with very low harmonic distortion and clear power. Pure sine wave output makes inductive loads run faster, quieter and cooler, generates less electrical noise in equipment and appliances, prevents crashes in computer and glitches in monitors, make these equipment last longer
Microprocessor-based digital control technology
Faster and more accurate processing of data
Built-in AVR
ArcPure UPS provides stable power to connected devices in unstable power conditions. It has built-in automatic voltage regulator, safety running in a wide voltage range, reduces the using of battery, prolongs the life of battery, especially suitable for power fluctuation or poor power areas, supplying clean power in extreme circumstances.
Superior protection
ArcPure UPS uses Line Interactive technology with pure sine wave output. It ensures superior protection against mains power disturbances, such as surges protection, overvoltage, undervoltage, as well as built-in short circuit and overload protection
Cold start capability
In the absence of any AC input, the cold start function allows users to start UPS with batteries, and without any damage to them or the circuits. Users can easily configure the UPS, even if no AC input is available
High-speed synchronous conversion
ArcPure system can automatically track the mains phase, to ensure that the inverter output voltage and mains voltage are identical, decrease the transfer time and surge voltage, minimize the interference to electrical equipment.
Auto sensing frequency
ArcPure UPS uses frequency adaptive technology. When UPS connect to mains with frequency 50HZ or 60HZ, the system will detect the frequency of mains power, and the output frequency will be the same as the detected frequency even when the mains power fails.
Intelligent battery management
- ArcPure series UPS adopt interactive Design. When mains power is connected, ArcPure system will automatically charging the battery, even the UPS is OFF, to ensure the battery have enough power. When the mains power fails, Aide system will automatically switch to battery mode to provide sufficient runtime for the load saving data and safety shutdown.
- In order to meet continuity applications requiring long battery runtimes, ArcPure UPS features adjustable charging current and adjustable low battery shutdown point to extend battery life.
- ArcPure UPS also be featured with battery temperature compensation to extend the battery life, three-stage charging to shorten recharge time and battery overcharge / over-discharge protections as well
Intelligent power ON/OFF
- When the mains power is restored after discharge of the batteries, ArcPure UPS will and automatically restartself-diagnose to ensure the functionality of the UPS system and batteries.
- ArcPure system can detect load and . When the load is automatically shut down in the no-load state (Optional) less than 5%, the system detects that it is under idling/no-load state, it will automatically shut down in about one minute, reduce losses, effectively extending the life of batteries.
RSarcPure 500VA - 3000VA
RSS Offline UPS 600-3000VA
FEATURES
- Automatic booting when the utility recovers
- Wide range of input voltage
- Alarm and mute
- Auto recharging
- Overvoltage and circuit short protection
- Interface of RJ45/11 and USB
RSS Offline UPS 600-3000VA
Modular UPS
RS Modular 20 20KVA ~ 160KVA
FEATURES
Excellent performance and high reliability
- Full DSP control technology has been used on rectifier, inverter and charger
- High input power factor > 0.99, THDi < 3% “N+X” parallel and redundancy technology: easily set up numbers of redundancy module on LCD panel, support 2 complete UPS in parallel, avoid single point failure and further strengthen the reliability
- Unique air isolation technology: isolation between key components and air duct effectively avoid the dust influence on key components
- Intelligent fan speed regulation: fan speed varies intelligently with the inner temperature, reducing noise and increasing the service life of the fan
- Standard configuration with SPD module: SPD (class C) effectively prevent the damage of lightning shock to the equipment
- Consistently reliable protection for hardware and software, sophisticated detection inside the UPS, abundant event log for future check
High usability
- 5.7 inches LCD touch screen provides easy-to-use feature with complete graphic user interface
- Easy maintenance with hot swappable operation for all modules
- Load sharing technology
- Easy expandability and scalability
- Integrated power distribution
- Flexible charging settings
- Configurable output voltage
- High power density and small footprint
- Front accessible maintenance
High availability
- Ultra wide input voltage range and frequency
- Dual input distribution
- High output power factor 1.0
RS Modular 20 20KVA ~ 160KVA
RS Modular 20 20KVA ~ 160KVA
FEATURES
Excellent performance and high reliability
- Full DSP control technology has been used on rectifier, inverter and charger
- High input power factor > 0.99, THDi < 3% “N+X” parallel and redundancy technology: easily set up numbers of redundancy module on LCD panel, support 2 complete UPS in parallel, avoid single point failure and further strengthen the reliability
- Unique air isolation technology: isolation between key components and air duct effectively avoid the dust influence on key components
- Intelligent fan speed regulation: fan speed varies intelligently with the inner temperature, reducing noise and increasing the service life of the fan
- Standard configuration with SPD module: SPD (class C) effectively prevent the damage of lightning shock to the equipment
- Consistently reliable protection for hardware and software, sophisticated detection inside the UPS, abundant event log for future check
High usability
- 5.7 inches LCD touch screen provides easy-to-use feature with complete graphic user interface
- Easy maintenance with hot swappable operation for all modules
- Load sharing technology
- Easy expandability and scalability
- Integrated power distribution
- Flexible charging settings
- Configurable output voltage
- High power density and small footprint
- Front accessible maintenance
High availability
- Ultra wide input voltage range and frequency
- Dual input distribution
- High output power factor 1.0
RS Modular 20 20KVA ~ 160KVA
RMS Modular Online UPS 10-90kVA (380V/400V/415V)
FEATURES
Rack modular design
Modular design, compatible with 19” standard rack cabinet, convenient to be integrated with servers
High power density
10/15kVA power module in 2U height, saving great amount of space, easy for capacity expansion
Integrated solution for data center
UPS can be integrated with battery cabinet, PDU and external maintenance bypass, offering excellent choice for data center
Intelligent charging management
The system intelligently control the whole process of the charging and discharging, effectively improving the life time of the battery
Flexible configuration
The system can be configured to 3/3, 3/1 and 1/1 without derating
Friendly interface
7” touch color LCD with graphic display, more information displayed and easier for customer to operate
Smart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
Self-aging mode
Energy internal circle technology, system can run with full load ,saving more than 90% energy
RMS Modular Online UPS 10-90kVA (380V/400V/415V)
RMS In-built Battery Modular Online UPS 20-60kVA (380V/400V/415V)
FEATURES
- Modular design with swappable battery package
- Monitor system for battery
- Integrated IGBT module with improved performance and reduced size
- Easy for installation and maintenance
- Easy for power expansion and backup time expansion
- Intelligent protection technology for safe and reliable hot swappable battery package of the system
- Smart charging management system, Intelligently control the whole process of the charging and discharging, effectively improving the life time of the battery
- Battery cold start
- Friendly human machine interface with touch screen
RMS In-built Battery Modular Online UPS 20-60kVA (380V/400V/415V)
RMS Modular Online UPS 25-600kVA (380V/400V/415V)
RMS Modular Online UPS 25-600kVA (380V/400V/415V)
RS Modular 50 50KVA ~ 600KVA
FEATURES
Excellent performance and high reliability
- Latest DSP digital control technology
- High input power factor > 0.99, THDi < 3%, high efficiency 96%
- High input power factor > 0.99, THDi < 3%, high efficiency 96% “N+X” wireless parallel and redundancy technology: easily set up numbers of redundancy module on LCD panel, support 4 complete UPS in parallel, avoid single point failure and further strengthen the reliability
- Consistently reliable protection for hardware and software, sophisticated detection inside the UPS, abundant event log for future check
- Fault-tolerant design for fan system: 30% load can be taken when 2 fans fail and 50% load can be taken when 1 fan fails
- High overload capability
- Intelligent hibernation design enables UPS to operate efficiently at low load rate
- Independent bypass module design and redundant power supply components ensure higher reliability
- Synchronous control function for 2N double bus system
High usability
- 7 inches LCD touch screen provides easy-to-use user interface
- Easy maintenance with hot swappable operation for all modules
- Load sharing technology
- Easy expandability and scalability
- Integrated power distribution
- High power density
- Front accessible maintenance, top / bottom cable entry compatible ( 200KVA top cable entry )
- Self-aging function make it easier to debug and test on site
- Standard configuration with parallel port and BSC port
High availability
- Ultra wide input voltage range and frequency
- High output power factor 0.9
- Flexible battery quantity settings
RS Modular 50 50KVA ~ 600KVA
RMS Modular Online UPS 40-500kVA (380V/400V/415V)
FEATURES
Compact design
500kVA in one cabinet, footprint less than 1.45m²，saving valuable room spaceHigh power density
50kVA power module in 4 U height, easy for capacity expansionHigh efficiency
Advanced 3-level technology guarantees high efficiency operating in double conversion mode up to 96%Intelligent charging management
The system intelligently control the whole process of the charging and discharging，effectively improve the life time of the batteryHigh scalability
The system can be configured from 40kVA to 500kVA in one single cabinet,3 units in parallel for a capacity up to 1500kVAFriendly HMI
10.4” touch color LCD with graphic display, independent LCD for each power moduleSmart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiencyMulti communication interface
Provide RS232,RS485,USB,SNMP,AS400 and programmable dry contacts
RMS Modular Online UPS 40-500kVA (380V/400V/415V)
Solar Inverter
Solar Inverter
Tough Series
Features
- Single/Dual MPPT (Maximum power point tracking), the range of MPPT: 150~500 Vdc.
- Maximum DC voltage is up to 650V to design system on best MPPT easily.
- IP65 water/ dust proof enclosure.
- Maintenance-free fan-less nature cooling design
- Up to 55° C without derating.
- Low acoustic noise while the inverter operates
- Monitor the power information and the system settings via a computer, the monitoring software and RS232 / RS485 / Bluetooth (optional) interfaces
- Conformity to the EMC, Low Voltage Directives and Standards, r.g. 2004/108/EC,2006/95/EC, IEC/EN 62109-1/-2 and VDE-AR-N 4105
Tough Series
Trinergy Plus Series
Features
- Dual MPPTs work independently and allow unbalance input power. One string max. input is up to 60% of Max. DC power
- High efficiency and sable performance at entire input voltage and output range
- Max. efficiency is up to 98.5%
- Wide input voltage range gives more possibilities for accepting different type of PV modules.
- BUS capacitor adopts advanced film capacitor, designed with the latest thermal simulation technology for longer lifespan.
- Reactive power control and power factor adjustable: 0.8 leading ~ 0.8 lagging
- 12V 100mA auxiliary DC power interface is optional for system expansion
- AC output power is adjustable during 1 ~ 100%
Trinergy Plus Series
Battery
Battery
NS Series
NG Series
NM Series
NML Series
OPvZ Series
OPvZ Tubular Type Series
AVR
AVR
GoldSource Stavol AVRs
